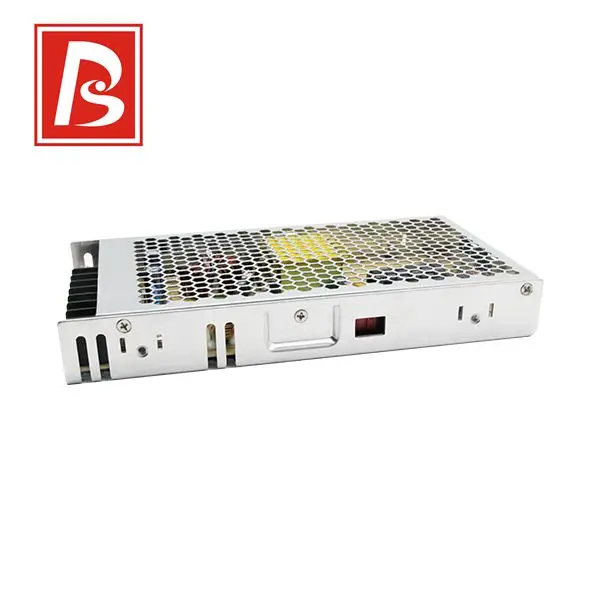

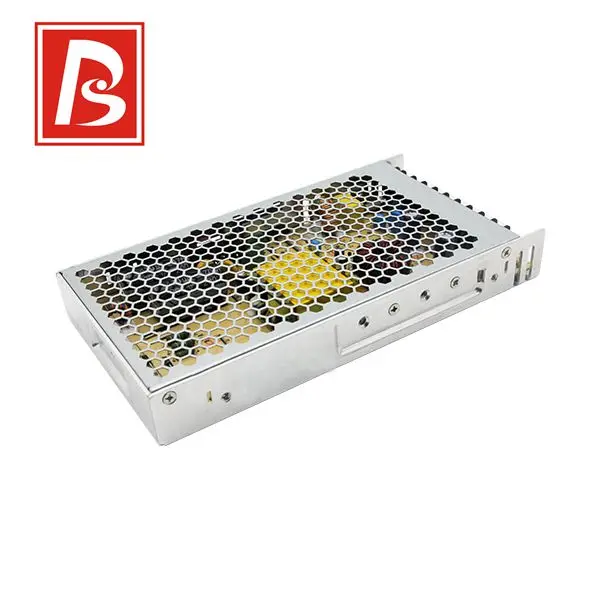

High Frequency Smps 5V 200W 230V AC Input 12V Dc Output Led Driver Power Supply

FOB Reference Price:Get Latest Price
US $17.5-24.5 / Units | 10 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China (Mainland)
Brand Name:
BST
Model Number:
ITS-200W
Output Power:
100-250W
Output Type:
Single
Input Voltage:
110/220VAC
Output Voltage:
3.3~48V
Output Frequency:
47~63Hz
Output Current:
0~40A
Application:
LED Lighting
Warranty:
2 years
OEM:
Available
Supply Ability
Supply Ability:
500000 Unit/Units per Month
Packaging & Delivery
Packaging Details
CARTONS,PALLETS
Port
Huizhou
Lead Time :
Shipped in 3 days after payment

High Frequency Smps 5V 200W 230V AC Input 12V Dc Output Led Driver Power Supply

ITS-200W Series



Product Description

 Features:

* AC input range selectable by switch

* Protections: Short circuit / Overload / Over voltage / Over temperature

* Cooling by free air convection

* LED indicator for power on

* 100% full load burn-in test

* Withstand 300VAC surge input for 5 seconds

* Built-in constant current limiting circuit

* Low cost,high reliability

* Fixed switching frequency at 90KHz

* 2 years warranty

Specification
MODELITS-200-3.3ITS-200-5ITS-200-7.5ITS-200-12ITS-200-15ITS-200-24ITS-200-27ITS-200-36ITS-200-48
OUTPUTDC VOLTAGE3.3V5V7.5V12V15V24V27V36V48V
RATED CURRENT40A40A27A17A14A8.8A7.8A5.9A4.4A
CURRENT RANGE0~ 40A0~40A0~27A0~17A0~14A0~8.8A0~7.8A0~5.9A0~4.4A
RATED POWER132W200W202.5W204W210W211.2W210.6W212.4W211.2W

VOLTAGE ADJ.

RANGE

2.97~3.7V4.5~5.6V6 ~ 9V10~13.5V13.5~18V20~26.4V26~32V32~40V41~56V

VOLTAGE

TOLERNCE

±2.0%±2.0%±2.0%±1.0%±1.0%±1.0%±1.0%±1.0%±1.0%
LINE REGULATION   ±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
LOAD REGULATION±1.5%±1.0%±1.0%±0.5%±0.5%±0.5%±0.5%±0.5%±0.5%
SETUP, RISE TIME100ms, 20ms/230VAC      1200ms,30ms/115VAC at full load

HOLD UP TIME

(Typ.)

20ms/230VAC          16ms/115VAC at full load
INPUT VOLTAGE RANGE90 ~ 132VAC / 180 ~ 264VAC selected by switch           254 ~ 370VDC
FREQUENCY RANGE47 ~ 63HZ

 EFFICIENCY

(Typ.)

75.0%79.0%82.0%85.0%85.0%87.0%88.0%89.0%89.0%

AC CURRENT

(Typ.)

4.5A/115VAC        2.5A/230VAC

INRUSH CURRENT

 (Typ.)

4.0A/115VAC        55A/230VAC
LEAKAGE CURRENT<2mA / 240VAC

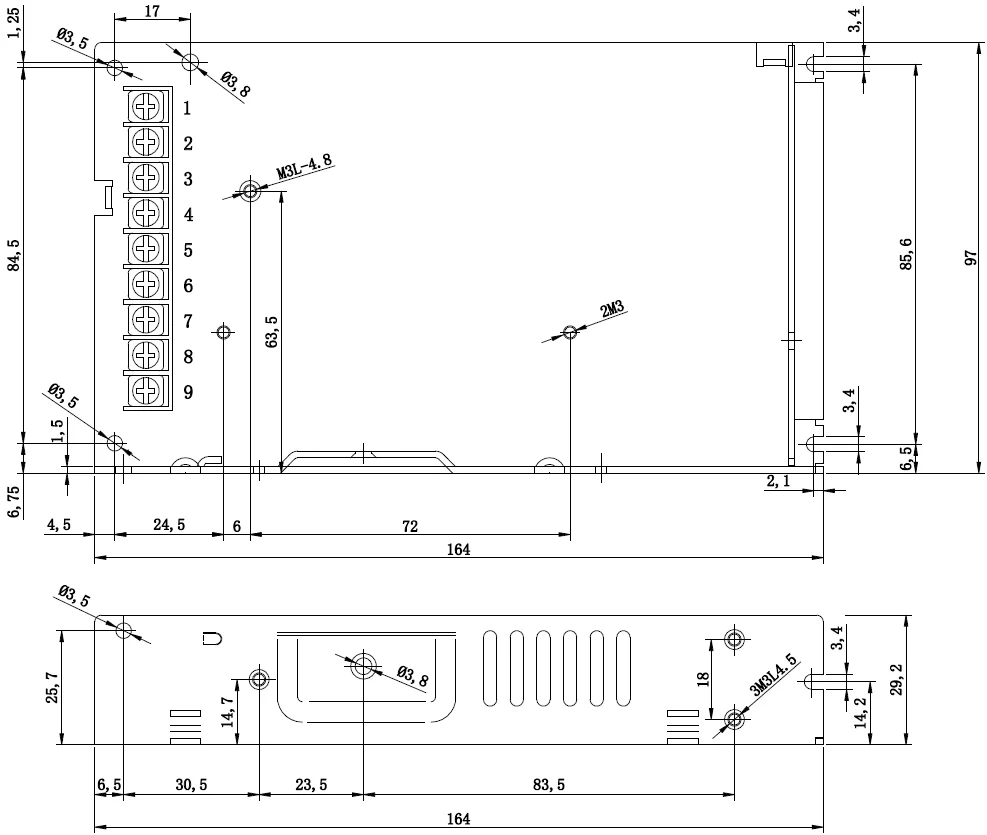

Mechanical Specification





Company Information



BST(HONGKONG) INDUSTRIAL CO., LTD specialized in R&D, producing and selling Switching Power Supply, Adapter, Converter and Inverter, and create our own brand BST. Our factory Tianchang Mingsheng Electronic Co., Ltd was founded in 2007 located in Tianchang City, the east of Anhui province and the workshop covers an area of 8,000 square meters. We share big domestic and international markets with an annual production capacity of more than 5 million units.

1



Providing customer with perfect solutions on power supply is our goal. All of our products have passed 100% loading aging test. Adopt advanced and stable circuit design and select high-quality electronic components to ensure product stability. Our products are widely used in communications, LED displays, monitoring equipment, electronic circuits, railway signal equipment, medical equipment, instrumentation, automatic and control equipment, etc.

2



We have excellent quality products, competitive price and fast delivery services. OEM and ODM services are also available. You are very welcomed to contact us, become business partners with BST, and enjoy our good services. Let’s join our hands and make the future brighter!

3

FAQ

 Q1. What's your lead time and shipment?
A1: 3-30 days which depends on the order items and quantity. We can ship the goods by express like DHL, UPS, Fedex etc. or by air and by sea with cargo company.



Q2. What's your MOQ?
A2: MOQ 10pcs for stock items; MOQ 500pcs for OEM order.



Q3. How about the Quality?
A3: We have the professional and experienced engineer team and strict QA and QC system. Repair rate under 3‰.



Q4. What is the payment you accept?
A4: T/T or Paypal. 50% deposit and 50% before shipment.



Q5. Do you accept OEM or ODM?
A5: Yes, we can custom the current, power, size or other special specifications as your requirement.
