High Reliability Crcuit Board Pcba For Consumer Electronics

FOB Reference Price:Get Latest Price
US $0.1-10 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
BST
Model Number:
FPCA
Base Material:
PI, PET
Copper Thickness:
0.5-10oz
Board Thickness:
0.2-4MM
Min. Hole Size:
0.2mm
Min. Line Width:
0.1mm
Min. Line Spacing:
0.1mm
Surface Finishing:
Lead-Free HASL
Supply Ability
Supply Ability:
800000 Square Meter/Square Meters per Month
Packaging & Delivery
Packaging Details
Vacuum Package+Carton
Port
Shenzhen, Guangzhou, Hongkong
Lead Time :
Quantity(Pieces) 1 - 10 11 - 500 501 - 1000 >1000
Est. Time(day) 3 7 10 To be negotiated

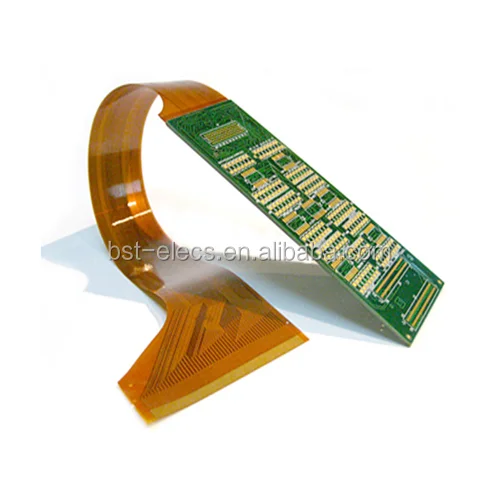

High Reliability Crcuit Board Pcba For Consumer Electronics

FPCA



Product Description

 Features:

* PCB&PCBA Manufacturing

* Reverse Engineering Services

* PCB Design and Assembly

* Component Procurement & Material Management

* Product Design

* Cable and Wire Assemblies

*Plastics and Molds

* AOI,X-Ray Testing, other Function Testing Service

Specification



ItemCapability
Product NameFPCA
Layer1-4 Layers
Quality GradeStandard IPC2
MaterialPI, PET, FR4-PI
Board SizeMin 6mm*6mm, Max 400mm*500mm
Board Thickness0.057mm-0.6mm
Copper Thickness0.5oz - 2.0oz
Min Tracing/ Spacing3mil
Drill hole diameter0.15 to 6.7mm
Inner layer dielectric thickness
0.0275 to 0.1mm
Hole diameter tolerance of PTH±2 mils
Hole diameter tolerance of NPTH±1 mil
Thickness of PTH hole copper8 to 30μm
Punching hole diameter0.1 to 5.0mm
Solder Mask SidesAs per the file
Solder Mask ColorGreen,White, Blue, Black, Red, Yellow
Solder Stop CoatingPI and PET Film
Silkscreen SidesAs per the file
Silscreen ColorWhite, Black, Yellow
Min Annular Ring4mil
Min Hole Diameter8mil
Tolerance Dimension±0.05mm
Surface FinishingHASL, HASL Leadfree, Immersion Tin, Gold Finger, OSP
Other Tech.Peelable Solder Mask, Stiffener



Company Information



BST(HONGKONG) INDUSTRIAL CO., LTD specialized in R&D, producing and selling Switching Power Supply , Adapter, Converter ,Led Driver ,PCB&PCBA and create our own brand BST. Our factory was founded in 2007 and the workshop covers an area of 8,000 square meters. We share big domestic and international markets with an annual production capacity of more than 5 million units.




Providing customer with perfect solutions on power supply and PCB is our goal. All of our products have passed 100% loading aging test. Adopt advanced and stable circuit design and select high-quality electronic components to ensure product stability. Our products are widely used in communications, LED displays, monitoring equipment, electronic circuits, railway signal equipment, medical equipment, instrumentation, automatic and control equipment, etc.




We have excellent quality products, competitive price and fast delivery services. OEM and ODM services are also available. You are very welcomed to contact us, become business partners with BST, and enjoy our good services. Let’s join our hands and make the future brighter!






FAQ

1.What's needed for quotation?

  • PCB: Gerber file,PCB specifications,quantity
  • PCBA: Gerber file+BOM

2.Are my documents safe?

  • All of our customers files we will keep within necessary internal use.Without approval we will never disclose it to any unrelated third party.

3.Can you provide one-stop solution?

  • YES. We can do PCB Design, PCB Manufacturing,PCB Assembly.

4.What's the L/T?

  • PCB: Small to medium volume 5-15working days depends on boards complexity.High volume is around 3-4W.
  • PCBA: Small to medium volume 3-4W,high volume is around 4-8W.

5.How do you ensure good quality?

  • QUALITY IS OUR CULTURE!
  • We control quality as per IPC standard strictly.
  • More than 10 years of PCB&PCBA Manufacturing experience.
  • Advanced equipments and experienced team.
  • Confirm EQ & Working Files before production with customer.
  • Alibaba Trade Assurance Supplier.
